Profoscope Rebar Locators

Get a Price/Quote

Product Details:

Resolution 0.1 mm
Measuring Range Diameter 6 mm to 34 mm rebars
Response Time Immediate digital response
Accuracy 1 mm cover depth
Operating Voltage 3 V (from batteries)
Features Rebar detection, cover measurement, quick scan mode, data storage
Equipment Type Handheld Rebar Locator
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Profoscope Rebar Locators Product Specifications

Machine Weight Approximately 700 g including batteries
Automation Grade Manual
Test Speed Manual scanning
Accuracy 1 mm cover depth
Display Type LCD digital display
Control Mode Manual
Response Time Immediate digital response
Temperature -10C to +50C operating temperature
Test Range Up to 180 mm concrete cover
Interface Type None/embedded
Number of Specimens Single device measurement
Power Supply 2 x AA batteries
Humidity 0 to 90% RH (non-condensing)
Mounting Type Handheld
Measuring Range Diameter 6 mm to 34 mm rebars
Application Locating rebars and estimating concrete cover
Equipment Type Handheld Rebar Locator
Capacity Standard detection as per device
Usage Civil engineering, construction
Features Rebar detection, cover measurement, quick scan mode, data storage
Operating Voltage 3 V (from batteries)
Resolution 0.1 mm

Memory Function Internal memory for results
Alarm Function Acoustic and visual alarms for rebar detection
Calibration Factory calibrated - calibration certificate available
Battery Life Approximately 50 hours continuous operation
Material Impact-resistant plastic housing
Data Storage Capacity Up to 100 measurement series
Protection Class IP54 dust and splash water protected
Compliance CE certified
Dimensions 250 mm x 90 mm x 45 mm

Product Description

Experience matchless precision with Profoscope Rebar Locators-India's laureate handheld solution for instant rebar detection and cover measurement. Crafted from impact-resistant plastic, this exceptional device offers up to 100 measurement series with instant LCD digital display and 1 mm accuracy. Its internal memory stores results, while acoustic and visual alarms deliver fresh feedback, ensuring safe, effective operation. The Profoscope boasts up to 50 hours of battery life, quick scan mode, and an IP54 protection class. Now available for instant checkout through popular suppliers and traders nationwide.

Profoscope Rebar Locators: Proven Performance On-Site

Widely used in civil engineering and construction, Profoscope Rebar Locators are designed for site applications including locating rebars and estimating concrete cover. Popular for their manual, handheld operation, they feature robust construction and a quick scan mode for efficient workflows. Core features-exceptional accuracy, instant readings, and durable plastic housing-ensure reliable results even under demanding conditions. This machine excels when applied to bridge inspections, building restorations, and structural analysis, assisting experts in delivering accurate assessments.

Shipped Goods, Sample Policy, and Certifications

Shipped goods are dispatched promptly from India's leading FOB ports, with a commitment to offering the lowest price for unmatched value. Suppliers extend an attractive sample policy to support evaluation before purchase, making offers even more compelling. Profoscope Rebar Locators carry CE certification and a factory calibration certificate, signaling the highest compliance standards. Trust in our certified product and seamless delivery to enrich your project needs efficiently.

FAQ's of Profoscope Rebar Locators:

Q: How does the Profoscope Rebar Locator enhance construction accuracy?

A: The Profoscope provides exceptional accuracy of 1 mm in cover depth measurement and real-time feedback via its LCD digital display, ensuring precise detection of reinforcing bars and improving construction quality.

Q: What is the process for storing and retrieving measurement data on this device?

A: The device features internal memory capable of storing up to 100 measurement series. Results are saved automatically and can be easily accessed via the LCD display for review and documentation.

Q: Where can the Profoscope Rebar Locator be used effectively?

A: This handheld locator is ideal for civil engineering and construction sites, including bridge inspections, building maintenance, and structural analysis, as it can detect rebars and estimate concrete cover even in tough environments.

Q: When should calibration be performed and is certification provided?

A: Profoscope devices are factory-calibrated and delivered with a calibration certificate. Routine calibration is not required immediately upon delivery, but annual recalibration is recommended for best results.

Q: What are the benefits of the alarm functions incorporated in the Profoscope?

A: Both acoustic and visual alarms notify users instantly when rebars are detected, reducing the risk of errors during scanning and offering immediate, clear alerts for safer, more efficient assessment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'NDT Testing Instruments' category

Pundit Lab Ultrasonic Pulse Velocity Tester Usage : Laboratory and field testing Display Type : Digital LCD display Features : Direct/indirect/transmission mode, Data storage, Builtin calibration, Battery status indication, Backlit display Application : Nondestructive testing of concrete, rock, and other structural materials Control Mode : Manual and Auto selectable Response Time : Instantaneous (measurement displayed after pulse reception) Accuracy : 0.1 microseconds (time measurement) Resolution : 0.1 microseconds Capacity : N/A (not a load instrument) Measuring Range : 2508000 m/s (pulse velocity) Number of Specimens : Multiple measurements (depends on test protocol) Interface Type : USB / RS232 (for PC connectivity) Test Width : Up to 1 meter (depending on transducer cable length) Power Supply : Internal rechargeable battery / External AC adapter (100240 V, 50/60 Hz) Port Size : Standard BNC connectors for transducers Humidity : 095% RH, noncondensing Specimen Size : Minimum sample thickness: 20 mm Temperature : 10C to +60C (Operating) Test Range : 0.1 to 5000 microseconds (transit time) Test Stroke : N/A (not applicable for ultrasonic testing) Test Speed : Adjustable, up to 10 measurements per second Automation Grade : SemiAutomatic Machine Weight : 2.5 kg (approx.) Frequency : 54 kHz (standard transducers) Operating Voltage : 9 V (battery), or with AC adapter Equipment Type : Ultrasonic Pulse Velocity Tester Mounting Type : Handheld

Send Inquiry

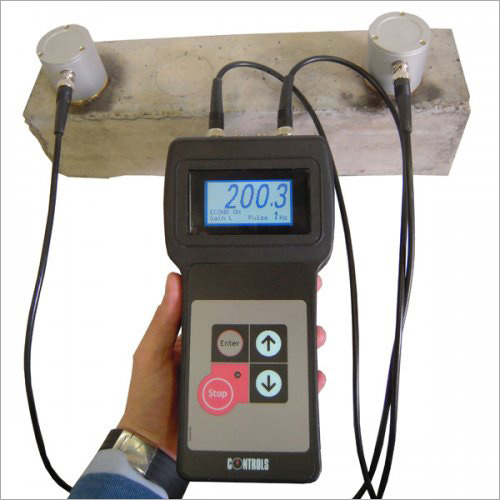

Controls Ultrasonic Pulse Velocity Tester Usage : Industrial Display Type : LCD Features : SemiDirect Transmission, Indirect or Surface Transmission, Easy Installation Application : Used for nondestructive determination quality of concrete. Product Type : Ultrasonic Pulse Velocity Tester Material : Cast Iron Voltage : 210 Volt (v)
